Features

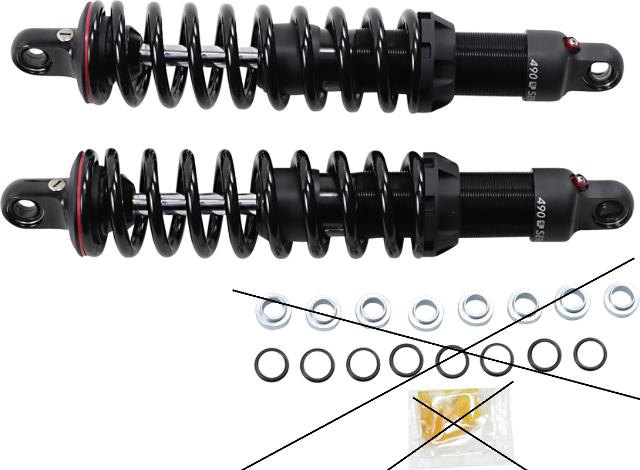

- True sport performance shocks
- Feature a high-pressure monotube with deflective disc-damping technology, hand threaded pre-load and rebound adjustment
- Linear rate spring allows riders to fine tune the damping and consistently withstand extreme temperature ranges and heavy loads
- Engineered jounce bumper and cup also help smooth out and control bottoming
- Made in the U.S.A
- All shocks are measured center-of-eyelet to center-of-eyelet.
- A shock which is slightly longer than stock may alter the head angle slightly and provide somewhat quicker steering.
- A shock which is slightly shorter than stock may alter the head angle slightly and provide somewhat slower steering.
- For OEM shock lengths, see Quick Reference Guide in the back of the catalog.
- Heavy Duty Applications are recommended for bikes that are operated at or near the manufacturer's maximum load rating over 50% of the time.
- Before purchasing or attempting to install shocks that are different than the OEM length, confirm that your wheel travel can be altered without causing clearance issues, such as swingarm/axle to exhaust contact as well as chain/belt guard or tire contract.
Specs
Model | 490 Series |
Reservoir Location | Internal |
Mounting Position | Rear |
Type | Coilover Monotube |
Duty | Heavy Duty |
Extended Length | 14.00" |
Adjustment Type | Adjustable Spring Preload |
Color/Finish | Black |
Damping Method | Gas Charged |
Material | Aluminum |
Riding Style | Street |
Product Name | Shock Absorber |
Spring Type | Single Linear Rate |
Units | Pair |
Fitments
2006 | Harley-Davidson | Street Bob FXDB |
2006 | Harley-Davidson | Super Glide FXD35 |
2006 | Harley-Davidson | Wide Glide FXDWG |
2006 | Harley-Davidson | Super Glide FXD |
2006 | Harley-Davidson | Low Rider FXDL |
2006-2008 | Harley-Davidson | Wide Glide EFI FXDWGI |
2006-2009 | Harley-Davidson | Super Glide Custom EFI FXDCI |
2006-2009 | Harley-Davidson | Super Glide EFI FXDI |
2006-2009 | Harley-Davidson | Low Rider EFI FXDL |
2008-2009 | Harley-Davidson | Fat Bob FXDF |
