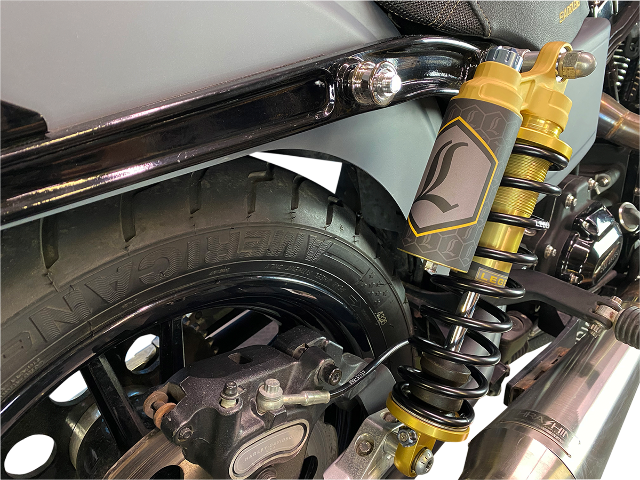

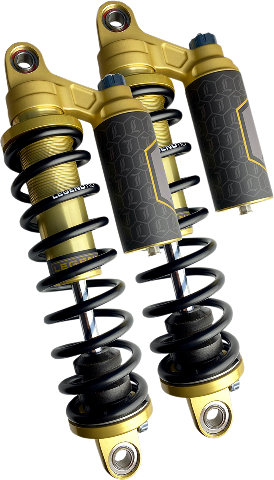

Legend REVO ARC Piggyback 13" Standard Rear Shocks 1999-17 Harley Dyna FXDL FXDF

More Views

$1,295.95

Features

  • Legend's touring specific spring rates produce superior ride quality and performance
  • REVO coils provide improved plush ride quality, control, and resistance to bottoming-out
  • REVO's extended coil length has larger "sweet spot" without increasing overall shock length
  • Allows minimal pre-load adjustments by hand when changing between riders' weights or loads
  • Adjusts by hand, no tools needed
  • Standard spring rate
  • Easy installation and alignment, provided by spherical bearings on both top and bottom
  • 35 mm monotube construction
  • Deflective disc valve stacks
  • Balanced/Matched piston and base-valve design specific for these motorcycle applications
  • Low friction sealing system and PTFE based sliding bearings for improved performance and feel
  • Seven external knob adjustments allow fine-tuning of rebound
  • Seven external knob adjustments allow fine-tuning of compression
  • Provides optimum rebound and compression performance for any given rider weight, personal ride quality preference, or personal riding style
  • Nitrogen gas bladder design allows ultra-fast response and stiction-free movement
  • Light to heavy riders can fine-tune ride preference
  • Aggressive to casual riding styles can tune to desired quality or personal preference
  • NOTE: DYNA MODELS: Heavy Duty application is recommended for 250lb.+ rider and passenger total weight. Also consider Heavy Duty if the majority of your riding is 2-UP, stunt riding, or aggressive riding style. Harley Davidson OEM Part Numbers 54666-08 (2), 7880 (2) and 8185 (2) are required for '91-'05 models.
  • P65 WARNING: Cancer and Reproductive Harm
  • Lifetime Warranty
  • Made by hand in Sturgis, SD USA

SPECIFICATIONS

PRODUCT NAME SHOCK ABSORBER
DUTY STANDARD
COLOR/FINISH GOLD
EXTENDED LENGTH 13.00" / 330,20 MM (13,00") / 330.20 MM
RESERVOIR LOCATION PIGGYBACK
MOUNTING POSITION REAR
UNITS PAIR
RIDING STYLE STREET


FITS THE FOLLOWING MODELS

1999-2000 Dyna Convertible FXDS-CONV
1999-2001 Low Rider FXDL
1999-2001 Super Glide FXD
1999-2001 Wide Glide FXDWG
1999-2005 Super Glide Sport FXDX
2000-2001 Wide Glide EFI FXDWGI
2001 Wide Glide FXDWG2
2001-2003 Super Glide T-Sport FXDXT
2002 Wide Glide FXDWG3
2002-2005 Wide Glide FXDWG
2002-2005 Low Rider FXDL
2002-2005 Super Glide FXD
2002-2005 Wide Glide EFI FXDWGI
2004-2005 Super Glide Sport EFI FXDXI
2004-2005 Low Rider EFI FXDL
2004-2005 Super Glide EFI FXDI
2005 Super Glide Custom FXDC
2005 Super Glide Custom EFI FXDCI
2006 Super Glide FXD35
2006 Street Bob FXDB
2006 Low Rider FXDL
2006 Super Glide EFI FXDI
2006 Wide Glide FXDWG
2006 Super Glide FXD
2006 Wide Glide EFI FXDWGI
2006 Low Rider EFI FXDL
2006 Super Glide Custom EFI FXDCI
2007 Screamin' Eagle Dyna FXDSE
2007 Street Bob FXDB
2007 Super Glide EFI FXDI
2007 Wide Glide EFI FXDWGI
2007 Super Glide Custom EFI FXDCI
2007 Low Rider EFI FXDL
2008 Screamin' Eagle Dyna FXDSE2
2008 Wide Glide EFI FXDWGI
2008-2009, 2014-2017 Low Rider EFI FXDL
2008-2010 Super Glide EFI FXDI
2008-2014 Super Glide Custom EFI FXDCI
2008-2017 Fat Bob FXDF
2008-2017 Street Bob FXDB
2009 CVO Fat Bob FXDFSE
2010 CVO Fat Bob FXDFSE2
2010-2011 Wide Glide EFI FXDWGI
2012-2016 Switchback FLD
2012-2017 Wide Glide EFI FXDWGI
2016-2017 Low Rider S FXDLS
